Product
CNC DIE SINKER CNC 400 / CNC450
High Speed & Accuracy, Mirror Surface, Sodick Based System, Win System
KEY FEATURES:
- Adaptive sparking control
- High speed jump & jump control
- A variety of positioning modes
- Auto fire-extinguish & Anti carbon system
- CNC Die Sinker Sodick supported system & Touching screen
- Work piece detection & Spark gap detection
- X/Y/Z Panasonic AC motors
- Marble material work table
- Code processing & Auto expert database
- Mirror finishing & Tungsten circuits
- 1um driven unit
Column (Ram) Type EDM Machine CNC1570 / CNC1800
High Speed, High loading Capacity, Excellent Rigidity Design
KEY FEATURES:
- Column Type spark machine discharge machining is realized by moving the electrode. The discharge structure of the workpiece is relatively moved. The load of the ram type spark machine’s discharge machining is lighter, which can better ensure the machining accuracy
- Column type spark machine adopts linear guide rail as the moving part, the motion response of the processing axis is more sensitive, and high-speed processing can be realized
- Column type spark machine has stronger load-bearing capacity. Its base and work surface are integrated quartz castings, without other connecting mechanisms in the middle, and are processed as a whole; therefore, it can greatly increase the load-bearing capacity
- Column type spark machine adopts automatic fuel supply system, which can set the fuel supply amount and fuel supply interval by yourself to ensure smooth movement
Column (Ram) Type EDM Machine CNC540 / CNC640
High Speed, High loading Capacity, Excellent Rigidity Design
KEY FEATURES:
- Adaptive sparking control
- High speed jump & jump control
- It adopts a ram type structure
- The worktable is fixed and the XY direction move through the ram
- Convenient to the loading and unloading of workpiece
- CNC Sodick supported system & Touching screen
- Work piece detection & Spark gap detection
- X/Y/Z Panasonic AC motors
- Marble material work table
- G-Code processing & Auto expert database
Column (Ram) Type EDM Machine CNC850 / CNC1060
High Speed, High loading Capacity, Excellent Rigidity Design
KEY FEATURES:
- Adaptive sparking control
- High speed jump & jump control
- It adopts a ram type structure
- The worktable is fixed and the XY direction move through the ram
- Convenient to the loading and unloading of workpiece
- CNC Sodick supported system & Touching screen
- Work piece detection & Spark gap detection
- X/Y/Z Panasonic AC motors
- Marble material work table
- G-Code processing & Auto expert database
Column Type Wire Cut EDM CNC800W / CNC1000W
Big structure, low operating cost, and large size
KEY FEATURES:
- C3 Level HI-WIN Ball Screw & Linear Guide
- Ra<1.0um / Accuracy<0.008mm
- Panasnoic Servo Motor Ensures High Accuracy
- C-shaped Structure and T-shaped Bed Ensure The Long-term Stability of The Machines
- Wire Cutting SPEED > 200mm²/min
- Auto Edge & Center Finding
- Big Taper Machining Accuracy
- Semi-Automatic Threading Without Manual Tightening
- USB & Lan
- Big Size Structure
- Column Type Movement
Die Sinking EDM CNC300 / CNC350
High Speed & Accuracy, Mirror Surface, Sodick Based System
KEY FEATURES:
- Adaptive sparking control
- High speed jump & jump control
- A variety of positioning modes
- Auto fire-extinguish & Anti carbon system
- CNC Sodick supported system & Touching screen
- Work piece detection & Spark gap detection
- X/Y/Z Panasonic AC motors
- Marble material work table
- G-Code processing & Auto expert database
- Mirror finishing & Tungsten circuits
- 1um driven unit
Die Sinking EDM ZNC350 / ZNC450
High Speed, User-Friendly System, Economical Solution
KEY FEATURES:
- 15’’LCD Screen controller
- Pre-install Tungsten Hard Metal Control Circuit, 30% less electrode loss
- Adopting fuzzy control theory, carbon deposition can be checked by itself
- On the time of unstable discharge, the machine have auto alert system
- From rough processing to fine processing can be finished at one time.
- Expert data system, simple operating for beginners
- Oil level control, process device will be stopped automatically
- Accelerograph control, if the display is OFF, devices will be stopped automatically
- If temperature of working fluid is too high, the process will be cut off automatically
- Temperature induction. fire alert and cut off the power supply at the same time
- Machine is designed by computer analysis with good structure and high precision
- Good precision screw and DC/AC servo motor are used in Z axis.
- High precision bearing and high precision ball screw are used in X,Y axis
- Rails are “V”shape, can move lightly under heavy load
Die Sinking EDM ZNC500 / ZNC550
High Speed, User-Friendly System, Economical Solution
KEY FEATURES:
- 15’’LCD Screen controller
- Pre-install Tungsten Hard Metal Control Circuit, 30% less electrode loss
- Adopting fuzzy control theory, carbon deposition can be checked by itself
- On the time of unstable discharge, the machine have auto alert system
- From rough processing to fine processing can be finished at one time.
- Expert data system, simple operating for beginners
- Oil level control, process device will be stopped automatically
- Accelerograph control, if the display is OFF, devices will be stopped automatically
- If temperature of working fluid is too high, the process will be cut off automatically
- Temperature induction. fire alert and cut off the power supply at the same time
- Machine is designed by computer analysis with good structure and high precision
- Good precision screw and DC/AC servo motor are used in Z axis.
- High precision bearing and high precision ball screw are used in X,Y axis
- Rails are “V”shape, can move lightly under heavy load
Die Sinking EDM ZNC650 / ZNC700
High Speed, User-Friendly System, Economical Solution
KEY FEATURES:
- 15’’LCD Screen controller
- Pre-install Tungsten Hard Metal Control Circuit, 30% less electrode loss
- Adopting fuzzy control theory, carbon deposition can be checked by itself
- On the time of unstable discharge, the machine have auto alert system
- From rough processing to fine processing can be finished at one time.
- Expert data system, simple operating for beginners
- Oil level control, process device will be stopped automatically
- Accelerograph control, if the display is OFF, devices will be stopped automatically
- If temperature of working fluid is too high, the process will be cut off automatically
- Temperature induction. fire alert and cut off the power supply at the same time
- Machine is designed by computer analysis with good structure and high precision
- Good precision screw and DC/AC servo motor are used in Z axis.
- High precision bearing and high precision ball screw are used in X,Y axis
- Rails are “V”shape, can move lightly under heavy load

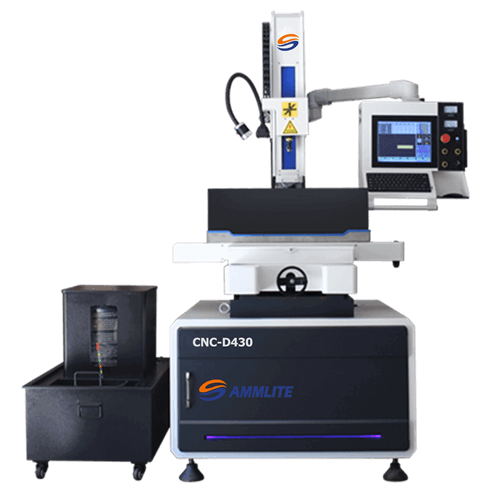

Drill EDM CNC-D430 / D435 / D640
High Speed, High Accuracy, Intellent Software
KEY FEATURES:
- Touch screen Win7 operating system, fast running speed, can process massive data at the same time
- Rich data interfaces, the system can directly load and edit data through USB, Internet, so as to generate the most reasonable processing route.
- Support X/Y/Z/W/C five-axis CNC machining, suitable for flat and arc surface drilling, and uneven workpieces with steps
- Support dwg & dxf format files and comes with an expert process library, users only need to input the workpiece material, electrode diameter, processing requirements and other conditions, the processing parameters are automatically called, and the hole processing parameters can also be manually adjusted.
- Automatic centering, automatic edge finding, and automatic finding of the surface of the workpiece.
- Precise depth control, automatic detection of electrode loss, and manual setting of electrode loss.
- Automatic penetration detection, and depth coordinates can also be set manually.
- X/Y axis have closed loop function, which can realize high-precision positioning.
- Ball screw & Linear Guide for x/y/z three-axis
- Manual and automatic integrated processing mode, automatically lock after x/y axis is positioned, and can be unlocked manually.
