5 Axis CNC Wire Cut EDM Machine

High Accuracy, Excellent Finishing, 5 Axis NC Control, Space Saving

KEY FEATURES:

5 Axis NC Controllable (X/Y/U/V/Z)
Z Axis Linear Guide Strucutre
Panasonic / Mitsubishi servo-motor
X/Y/U/V axis linear guide and ball screw
Accuracy<±0.003mm / Ra<1.0um

Email: [email protected]
Mobile Phone: (86) 189-1244-6263
Location: Liuqiao Industrial Zone, Nantong City, Jiangsu, China

contact Us

Description
Reviews (0)

Description

Technical Specification

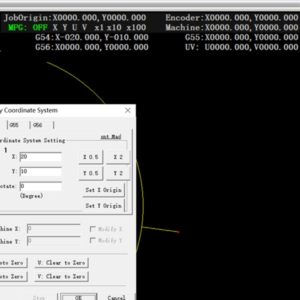

The 5 axis cnc wire cut EDM machine first launched by Sammlite Machinery is equipped with an intelligent control system with 0.1u resolution, which fundamentally improves the performance of molybdenum wire cut EDM. Achieving the precision comparable to the brass wire cut EDM, bringing great convenience and extreme stability to customers. The machine body is made of HT250 castings, which fully suppress the deformation of the machine bed under load. The structure is compact and the layout is reasonable. As a result, it only occupies an area of 3m², which greatly saves the floor space.

Specification	CNC500FC
Table Size	780×530 mm
X/Y Axis Travel	500×350 mm
Max Cutting Thickness	300 mm
Max Workpiece Weight	500 KG
Driven Motor	Panasonic / Mitsubishi Servo Motor
Cutting Speed	200 mm²/min
Accuracy	±0.003mm
Surface Roughness	1st Cut Ra<2.3um, 2nd Ra<1.6um, 3rd Ra≤1um
Molybdenum Wire Diameter	0.12-0.20 mm
Taper （U/V Axis)	±10° / 80mm
Machine Dimension	178115932028 mm
Machine Weight	2200 KG

5 Axis CNC Wire EDM Details

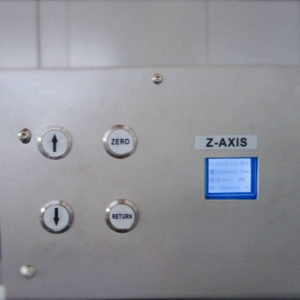

Scientific Design of Z/U/V Structure

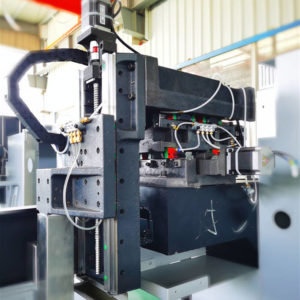

The Z/U/V axises use ball screw and linear guide to achieve high precision. It suits taper cutting prefectly and allows users to have better operating experience.

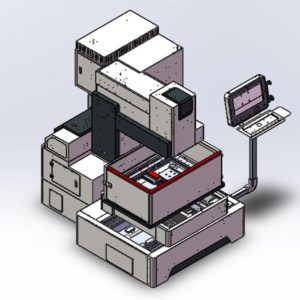

Space Saving Design Only 3m²

X-axis and Y-axis are table movement structure. 5 axis CNC Wire Cut EDM machine adopts HT250 castings, which has a compact and beautiful structure. Occupied area 3m².
