Die Sinking EDM ZNC350 / ZNC450

KEY FEATURES:

15’’LCD Screen controller
Pre-install Tungsten Hard Metal Control Circuit, 30% less electrode loss
Adopting fuzzy control theory, carbon deposition can be checked by itself
On the time of unstable discharge, the machine have auto alert system
From rough processing to fine processing can be finished at one time.
Expert data system, simple operating for beginners
Oil level control, process device will be stopped automatically
Accelerograph control, if the display is OFF, devices will be stopped automatically
If temperature of working fluid is too high, the process will be cut off automatically
Temperature induction. fire alert and cut off the power supply at the same time
Machine is designed by computer analysis with good structure and high precision
Good precision screw and DC/AC servo motor are used in Z axis.
High precision bearing and high precision ball screw are used in X,Y axis
Rails are “V”shape, can move lightly under heavy load

Description

Specification	ZNC350	ZNC450
Table Size	600×320 mm	700×400 mm
X/Y Axis Travel	350×250 mm	450×350 mm
Z Axis Travel	180 mm	200 mm
Max Workpiece Weight	700 KG	1000 KG
Driven Motor	SANYO DC Motor
Electrode Weight	50KG	80KG

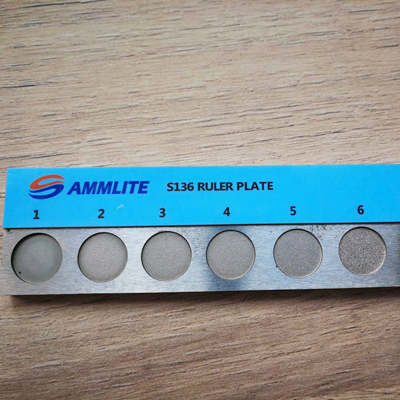

Surface Roughness	Ra<0.6um	Ra<0.6um
Distance From Worktable to Electrode Plate	350mm	520mm
Electrode Wear Ratio	<0.2%	<0.2%
Position Accuracy	0.02mm	0.02mm
Machine Weight	1400 KG	1600 KG
