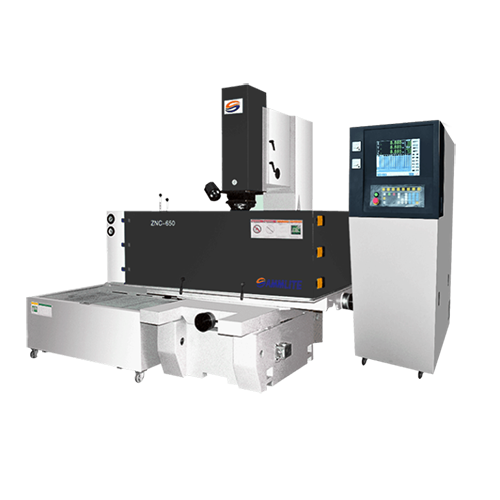

Die Sinking EDM ZNC650 / ZNC700

KEY FEATURES:

15’’LCD Screen controller
Pre-install Tungsten Hard Metal Control Circuit, 30% less electrode loss
Adopting fuzzy control theory, carbon deposition can be checked by itself
On the time of unstable discharge, the machine have auto alert system
From rough processing to fine processing can be finished at one time.
Expert data system, simple operating for beginners
Oil level control, process device will be stopped automatically
Accelerograph control, if the display is OFF, devices will be stopped automatically
If temperature of working fluid is too high, the process will be cut off automatically
Temperature induction. fire alert and cut off the power supply at the same time
Machine is designed by computer analysis with good structure and high precision
Good precision screw and DC/AC servo motor are used in Z axis.
High precision bearing and high precision ball screw are used in X,Y axis
Rails are “V”shape, can move lightly under heavy load

Description

Specification	ZNC650	ZNC700
Table Size	1000×600 mm	1200×650 mm
X/Y Axis Travel	650×550 mm	700×600 mm
Z Axis Travel	300 mm	300 mm
Max Workpiece Weight	2000 KG	2000 KG
Driven Motor	SANYO DC Motor
Electrode Weight	150KG	150KG
Surface Roughness	Ra<0.6um	Ra<0.6um
Distance From Worktable to Electrode Plate	850mm	950mm
Electrode Wear Ratio	<0.2%	<0.2%
Position Accuracy	0.02mm	0.02mm
Machine Weight	3000 KG	3500 KG
