We spare no effort to overcome technical difficulties one by one, that is, we hope that all customers after using the SAMMLITE manufacturerd drilling EDM will feel not only the fast punching speed, ultra-low electrode consumption, user-friedly system, but also we have developed special models for various purposes, such as tungsten steel special machines, ejector hole special machines, concentricity special machines, (0.1-1.0mm) special machines for different purposes.

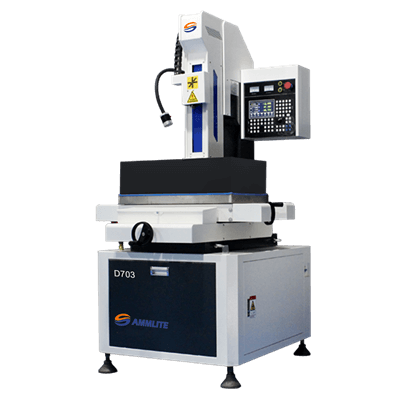

The biggest difference between D703 and D703B model is that B model included Z axis depth detection and Z axis auto lifting function. The design of D703 is an excellent choice for users who needs to make starting hole for wire cut EDM.
| Specification | D703 | D703B |
|---|---|---|
| Table Size | 440×320 mm | 440×320 mm |
| X/Y Axis Travel | 400×300 mm | 400×300 mm |
| Z Axis Travel | 380 mm | 380 mm |
| Max Workpiece Weight | 300 KG | 300 KG |
| 2-nd Axis Travel | 280 mm | 280 mm |
| Electrode Diameter | 0.3-3.0mm | 0.3-3.0mm |
| Max Current | 30 Amp | 30 Amp |
| Max Workpiece Height | 300 mm | 300 mm |
| Z Axis Detection | / | Include |
| System | LCD Display | LCD Display |
| Machine Weight | 750 KG | 750 KG |
