Description
Technical Specification

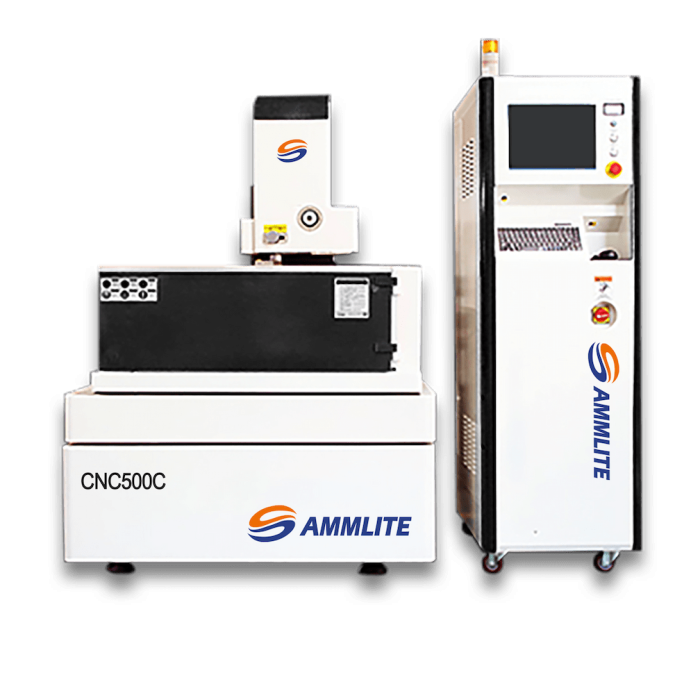

The manual control CS series wire cut edm adopts a stepping motor drive method. This drive method is simple, the control circuit is simple, and the control accuracy is low. It is an open-loop drive and cannot achieve accuracy compensation. At the same time, the driving torque is small, and gear shifting is usually required to increase the torque. In order to reduce the transmission accuracy and the smoothness of movement, the gearbox needs long-term grinding treatment to achieve. In this way, the accuracy of the new machine tool can be guaranteed.
| Specification | CNC500CS |
|---|---|
Table Size | 900×600 mm |
X/Y Axis Travel | 630×500 mm |
Max Cutting Thickness | 250 mm |
Max Workpiece Weight | 400 KG |
Driven Motor | Step-Motor 5 Phases & 10 Bits |
Cutting Speed | 160 mm²/min |
Surface Roughness | 1st Cut Ra<2.3um, 2nd Ra<1.6um, 3rd Ra≤1um |
Molybdenum Wire Diameter | 0.12-0.20 mm |
Taper （U/V Axis) | ±3°/±6° 70mm |
Machine Dimension | 2000*1300*2000 mm |
Machine Weight | 2200 KG |
Applications
| Material | DC53 |
| Thickness | 30mm |
| Cuts | 3 cuts |
| Hours | 6 hours |
| Ra | 0.95 um |
| Material | CR12 |
| Thickness | 210mm |
| Cuts | 3 cuts |
| Hours | 2 hours |
| Ra | 1.5 um |
| Material | H13 |
| Thickness | 42mm |
| Cuts | 2 cuts |
| Hours | 3 hours |
| Accuracy | 0.01mm |
| Material | CR12 |
| Thickness | 40mm |
| Cuts | 3 cuts |
| Hours | 40 min |
| Accuracy | 0.008mm |
